Feeding Unit

    ● Independent motor frequency conversion drive;

    ● A number of high-quality thickened belts and electric paper stacking vibration device ensure accurate and smooth feeding;

    ● The adjustment of each mechanism in the feeding unit is convenient and easy, which shortens the setting and job changing time.

    ● There are 2 sets of main knife / auxiliary knife for feeding;

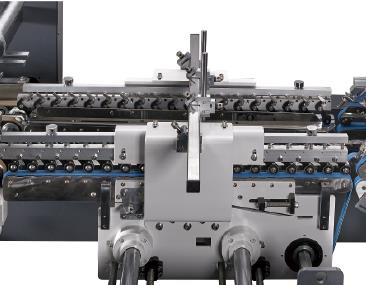

    Pre-Folding Unit

    ● It is suitable for the products that need to enter the automatic packaging line, fold No.1 creasing line 180

       degrees and No.3 creasing line 135 degrees, so as to facilitate the opening of the product when filling the material.

    ● It can also provide auxiliary folding function for boxes that need to be folded many times.

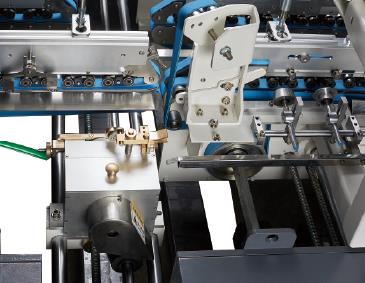

    Crash Lock Bottom Unit

    ● Large / medium / small complete set of lock bottom parts to ensure the accurate and smooth production

       of different sizes of lock bottom box;

    ● The upper pressure transmitter is of retractable design, which can be flexibly adjusted according to different lock bottom boxes;

    ● Open mechanism design, easy to operate, convenient to disassemble and install

    Gluing Unit

    ● Both the left and right bottom gluing units can be used to micro-adjust the glue volume individually;

    ● The upper gluing device is the high-speed electronic glue gun spraying system;

    ● Disassembly and installation is convenient, easy to clean and maintain;

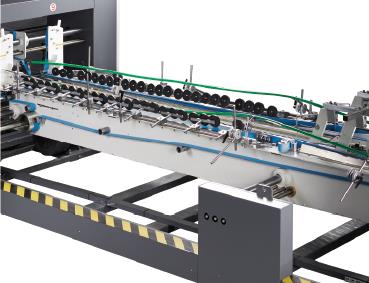

    Final Folding Unit

    ● Extended long journey design, so that the paperboard can fully stretch here, and the second line & the fourth line

       can be naturally shape into form;

    ● Left and right folding belt 180 degrees independent speed adjustable;

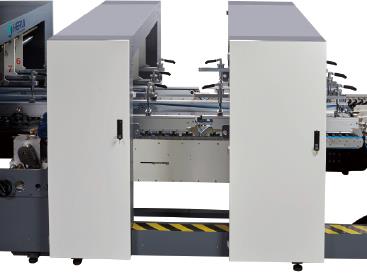

    Trombone Unit

    ● The upper and lower transporters are driven separately, which are suitable for all kinds of long and short boxes;

    ● Continuous and automatic carton accumulation ensures the natural and smooth accumulation of cartons of different sizes in this part;

    ● Alignment device.

    ● Equipped with automatic kicking & counting device;

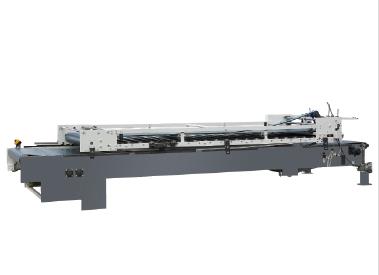

    Conveying Unit

    ● The pneumatic pressure adjustment design can adjust the applied pressure accurately;

    ● Using two independent imported belts, soft and moderate, with sponge belt, to ensure that the product will not

       damage the surface in the process of glue curing.

    ● The speed of the conveyor is adjusted automatically according to the rotation speed of the main engine, and the

       manual operation mode and speed can also be selected;

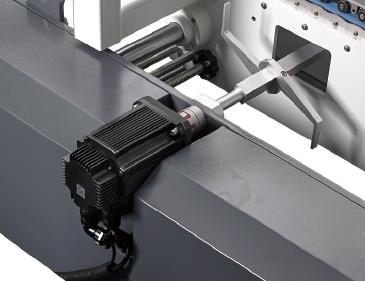

    Back Folding Device

    ● The independent main control panel is easy to operate and master;

    ● Two groups of high-precision servo motors drive the electronic back-folding system and cooperate

        with the motion controller to ensure the accurate movement of the two servo shafts in high-speed operation;

Technical Parameters

Model

1450

1650

1850

Carton Specifications

Model

One-side gluing

Double-wall gluing

Bottom gluing

4-Corner

4- Corner with Lid

6-Corner
