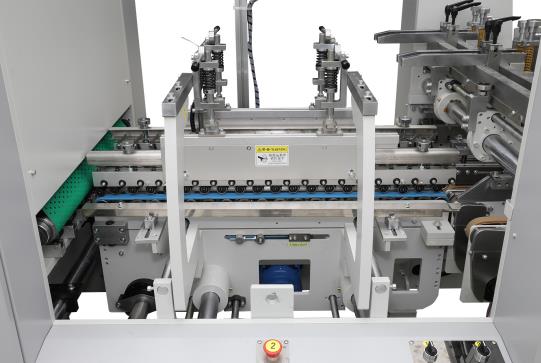

● Independent motor-driven transmission for flexible adjustment and wider product compatibility;

          maintains constant torque output.

       ● Belt replacement without shaft removal, simplifying maintenance and reducing downtime.

       ● Micro high-speed vibration mechanism with adjustable amplitude.

       ● Specially engineered feeding blades for enhanced wear resistance and reliable paper feeding.

       ● Optional vacuum suction paper feeding mechanism.

       ● Integrated box-shape correction mechanism ensures precise folding.

       ● Compatible with cardstock and corrugated paper materials.

       ● Simple operation with high-precision adjustments.

       ● Large-area suction belt conveyance combined with high-power silent suction fans enables stable

          product transfer and improved detection accuracy.

       ● High-precision inspection system for easy installation and maintenance.

       ● Silent dust removal system effectively reduces false detection alerts.

       ● High-speed solenoid valves control pressurized airflow nozzles to accurately identify printing defects.

       ● Switchable rejection modes (air-blowing or flap-turning) for different products.

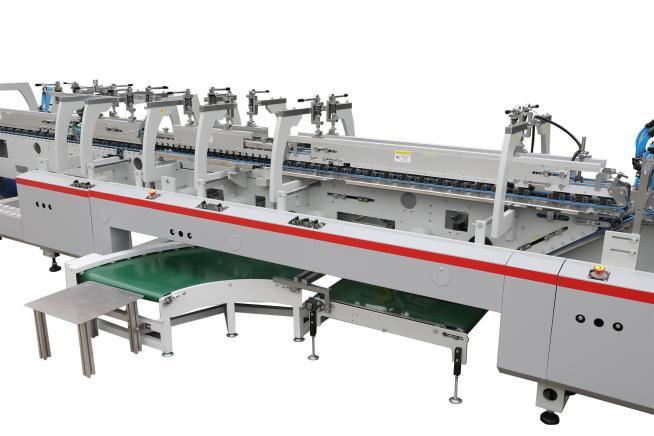

       ● 35° downward conveyor design buffers product delivery during high-speed operation.

       ● Rejected products diverted outward via transfer conveyor for operator-friendly handling.

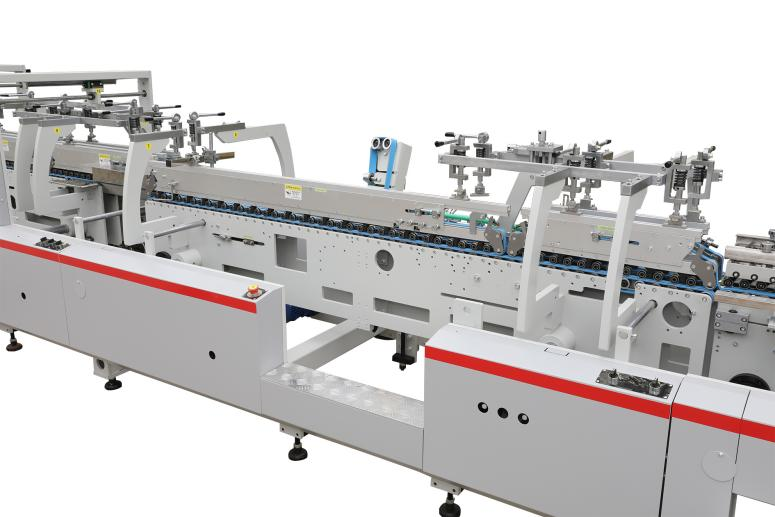

       ● Extended pre-folding section: 180° pre-fold for glue flaps and >135° for third fold lines. Handles small/large

          boxes at high speed for effortless automated packaging.

       ● Specially designed right folding belt: Optional post-pre-folding opening mechanism or nested-box non-opening mechanism.

       ● Stable and user-friendly pre-folding operation.

       ● Multiple modular bottom-hooking attachments enable quick changeovers.

       ● Telescopic upper pressure belt mechanism accommodates diverse bottom-lock box structures.

       ● Pre-installed mounts for optional 4/6-corner reverse hook mechanism (upgradable as needed).

       ● Oversized glue wheel design minimizes glue splatter and ensures smooth operation.

       ● Precision gluing structure supports high-speed production; enlarged glue tank reduces refill frequency.

       ● Independent motor-driven glue wheel transmission reduces noise and simplifies operation.

       ● Post-folding pressure roller structure ensures rational and reliable bonding.

       ● Dual sliding plates with freely extendable upper/lower belt tails. Chain-linked front/rear pressure

          adjustment for quick setup.

       ● High-speed kick-out counting function at pressing exit ensures accurate product output.

       ● Precision slide rail mechanism on telescopic rods for effortless operation.

       ● Multi-stage pneumatic pressure system applies customized pressure per segment to prevent surface marks.

       ● Dual soft sponge pressure belts optimize box shaping.

       ● Independent servo-driven upper/lower belts precisely control speed differentials for smooth product reception.

       ● Independent servo motor control system with HMI parameter settings.

       ● Densely arranged pressure rollers ensure smooth box collection.

       ● Lateral conveyor features gear rod-adjustable left/right belts with central space for box/card placement,

          enabling rapid collection.

Specification

Model

TFold 65 Pro

TFold 85 Pro

TFold 115 Pro

4/6 corner devices

Memory storage

Automatic box collecting device
