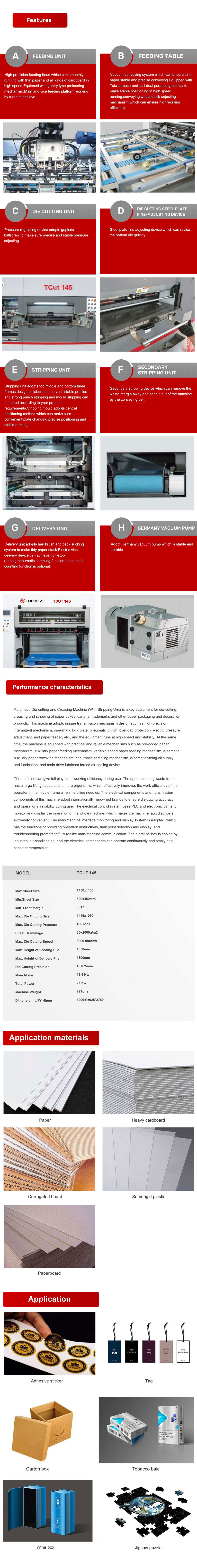

Features
01/FEEDING UNIT
 High precision feeding head which can smoothly running with thin paper and all kinds of cardboard in high speed. Equipped with gantry type preloading mechanism.Main and vice feeding platform working by turns to achieve |
02/CONVEYING UNIT
Vacuum conveying system which can ensure thin paper stable and precise conveying. Equipped with Taiwan push-and-pull dual purpose guide lay to make stable positioning in high speed running;conveying wheel quick adjusting mechanism which can ensure high working efficiency |
03/DIE CUTTING UNIT
Pressure regulating device adopts gapless ballscrew to make sure precise and stable pressure adjusting. Torque overload protection device. |
04/DIE CUTTING STEEL PLATE FINE-ADJUSTING DEVICE
 Steel plate fine adjusting device which can revise the bottom die quickly |
05/STRIPPING UNIT
 High precision feeding head which can smoothly running with thin paper and all kinds of cardboard in high speed. Equipped with gantry type preloading mechanism.Main and vice feeding platform working by turns to achieve |
06/SECONDARY STRIPPING UNIT
Vacuum conveying system which can ensure thin paper stable and precise conveying. Equipped with Taiwan push-and-pull dual purpose guide lay to make stable positioning in high speed running;conveying wheel quick adjusting mechanism which can ensure high working efficiency |
07/DELIVERY UNIT
Pressure regulating device adopts gapless ballscrew to make sure precise and stable pressure adjusting. Torque overload protection device. |
08/GERMANY VACUUM PUMP
 Steel plate fine adjusting device which can revise the bottom die quickly |
Specification |
Model | TCut 145 |
Max. Sheet Size | 1450x1100mm |
Min. Sheet Size | 590x450mm |
Min. Front Margin | 8~17 |
Max. Die Cutting Size | 1445x1090mm |
Max. Die Cutting Pressure | 450Tons |
Sheet Grammage | 80 ~ 2000g/m2 |
Max. Die Cutting Speed | 6000 sheet/h |
Max. Height of Feeding Pile | 1650mm |
Max. Height of Delivery Pile | 1500mm |
Die Cutting Precision | ±0.075mm |
Main Motor | 18.5 Kw |
Total Power | 27 Kw |
Machine Weight | 29Tons |
Dimension (L*W*H) mm | 10064*5025*2759 |
Application materials |
Application |
